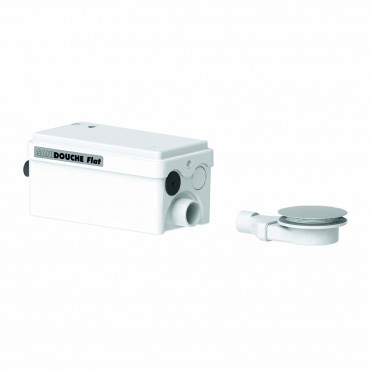

Sanidouche Flat

Sanidouche Flat

Ideal pumping solution for a low level shower tray. Capable of pumping a standard electric or gravity mixer shower. Two inlets mean a wash basin can be added too.

  • Suits low level shower trays of 80mm and over
  • Overcomes gravity drainage issues and allows basement showers
  • Two part kit with shower flat pump plus gully and waste
  • Pumps up to 3m vertically or 30m horizontally
€0.00


Application

  • Shower tray
  • Washbasins

The Sanidouche Flat is an ideal pumping solution for low level shower trays. It is capable of pumping a standard electric or gravity mixer shower and has two inlets so a basin can be added too. The shower pump can be installed next to a shower tray and overcomes gravity drainage issues so could allow for a shower in a basement. It is...

See more

Sanidouche Flat datasheet

Dimensions l x w x h (mm)
295 x 162 x 144

Sanidouche Flat
Max. flow rate 30 L/min at 1m
Number of inlets available 2
Diameter of inlets 32 mm (shower) 40 mm (sink)
Recommended discharge diameter 32 mm 40 mm
Engine consumption 250 W
Supply voltage 220-240V/50Hz
Maximum absorbed current 1.3 A
Electrical class I
Protection index IP44
Maximum temperature of incoming water 35 °C
Max. horizontal discharge 30 m
Max. vertical discharge 3 m
Weight 3.7 kg
Switching height 30 mm
Shower tray height 8 cm
